Pneumatic Rotary Valve

Application:

Pneumatic Rotary Valves are a type of directional control valves which are used for control of pneumatic cylinders or as part of large pneumatic circuit, They are largely used for panel mounting applications.

Construction :

Pneumatic Rotary Valves are very rugged in construction. They consist of a body, cap and large bore poppets through which the air passes. The valve is operated using a knob provided on the top with an operating lever provided optionally for ease of operation. The valve is also provided with an optional MS powder coated plate for mounting of the valve on to a panel.

Material Of Construction:

Body : Aluminum alloy .
Cap : Aluminum alloy.
Poppet : Brass with nitrile seals pre-molded.

Operating Condition :

Fluids : Compressed Air or Inert Gases.
Fluid Pressure :Air 10 Bars (150 PSI).
Fluid Temperature : Ranging from 200c to 700c .
Note:

Other sizes available on request.
Dimensions are subject to change. Please confirm while ordering.
All Dimensions are in mm.

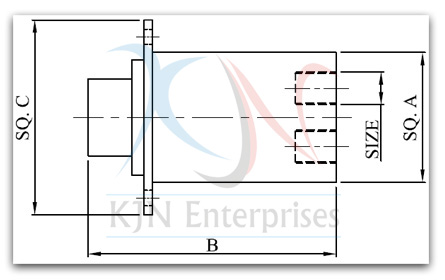

SIZE	A	B	C
1/8" BSP
1/4" BSP	2"	80	3"
1/2" BSP	3"	97	4"
3/4" BSP
1" BSP
